Simple Design Coiled Tubing Tool fishing Tool Junk Basket
Product Overview

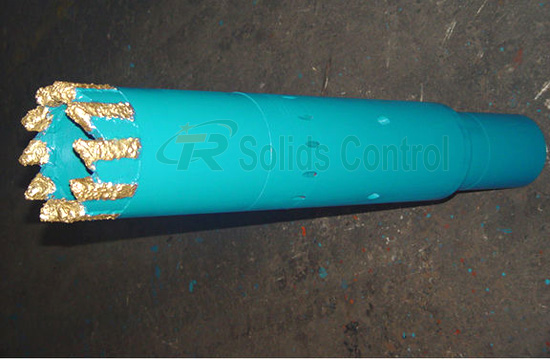

Junk basket is a rugged junk fishing device, using either a Mill Shoe or Flat Bottom Type Shoe in conjunction with two sets of free revolving finger type Catchers. This superior tool removes such items as slips, hand tools, bit cones, and any other small pieces of junk from the well. The RCB uses reverse circulation to aid junk recovery.
The tool can also be used for drilling full gauge holes or hole reaming with thecuttings being retained in the basket.
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. main products include: shale shaker, mud agitator, drilling jar, fishing jar, shock sub, fishing tools, stabilizer, roller reamer, drill collars, drill pipes, tool joints and service equipment for surface drilling tools. Our products have been exported to America, South America, Saudi, Germany, Iran , Kazakhstan, India, Pakistan, Middle East, South Africa, Egypt and Columbia etc.
Specifications
Reverse Circulation Junk Basket
1. 360 degree recovery surface
2. Cutting of core not required
3. API-7-1 standard
Main Specifications of Our Reverse Circulating Junk Basket
| type | Barrel O.D. (mm) | Fish Max.O.D. (mm) | Ball Dia. (mm) | Thread Conn | Hole Size (mm) |
| LL-381 | 381 | 282 | 55 | 7 5/8REG | 406-444 |
| LL-318 | 318 | 248 | 55 | 6 5/8REG | 349-406 |
| LL-F286 | 286 | 217 | 55 | 6 5/8REG | 320-346 |
| LL-F279 | 279 | 211 | 55 | 6 5/8REG | 300-341 |
| LL-F254 | 254 | 195 | 55 | 6 5/8REG | 275-295 |
| LL-F245 | 245 | 192 | 50 | NC50 | 275-295 |
| LL-F232 | 232 | 179 | 50 | NC50 | 255-270 |
| LL-F200 | 200 | 154 | 45 | NC50 | 223-241 |
| LL-F195 | 195 | 149 | 42 | NC50 | 215-241 |
| LL-F178 | 178 | 130 | 42 | NC50 | 198-209 |
| LL-F168 | 168 | 123 | 42 | NC50 | 190-209 |
| LL-F130 | 130 | 94 | 40 | NC31 | 155-165 |
| LL-F121 | 121 | 90 | 35 | NC31 | 142-152 |
| LL-F114 | 114 | 82 | 35 | NC31 | 130-140 |
| LL-F97 | 97 | 62 | 30 | NC26 | 117-127 |
| LL-F89 | 89 | 55 | 30 | NC26 | 108-114 |
Our Service
1.We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. And the products have a long warranty period.
2.Our sales team will response for your question within 24 hours (Holidays Excluded).
3.Free replacement will provide once the failure confirmed caused by our product quality.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
